Stable Input Static Pressure Level Transmitter PVC Cable With Shield

Ask Lasest Price
Brand Name :
Model Number :	ML2000T
Price :	Negotiation
Payment Terms :	T/T
Supply Ability :	10000pcs per month
Delivery Time :	7-10 working days

Add to Cart

Product Details
Company Profile

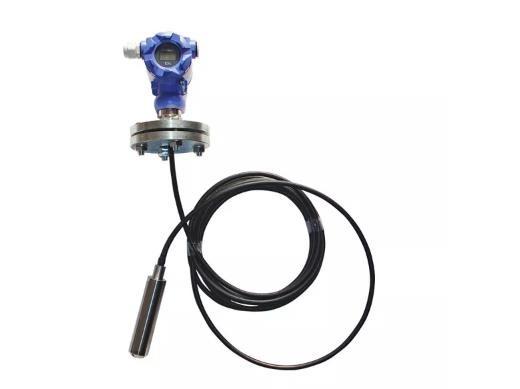

Stable Input Static Pressure Level Transmitter PVC Cable With Shield

Stable Input Static Pressure Level Transmitter PVC Cable With Shield
1. Introduction
ML2000T series static liquid level transmitter adopts imported silicon pressure transducer as sensitive element, utilizing reasonable industry structure to finish stainless steel sealing package. The amplifying circuit can ensure measurement accuracy through laser compensation . The electrical connection cable applies is anti corrosive gas shielded cable which makes the back pressure chamber is directly connected to the atmosphere.

2. Features

The tested medium is extensive. As long as the liquid is compatible with the diaphragm material and the paste, it can be measured.
The lifetime is long for it has stainless steel material, reasonable sealing package and special cable.
It has high accuracy and good stability. The transducer realizes temperature compensation with 0-85℃ and eliminates accuracy influence caused by temperature drift through compensation circuit.
ML2000T series is easy installed. Just immerse the probe into medium directly and connect the signal cable to secondary instrument. Adapt to small installation space. When installation, please try to fix the cable to avoid shaking of transducer for shaking can influence the accuracy and lifetime of the transducer.
Upgrade features:

①　Power supply non polar connection
②　Field or Outside lightning prevention design

3. Structure & Material

Isolation Diaphragm	316L Stainless Steel
Transducer:	Stainless Steel(Cylinder Shape)
Sealing:	Fluorine Rubber
Cable:	PVC Cable With Shield
Product Types	Common, Oil Resistance, Corrosion Resistance

4. Configuration

Type	Specification Code	Illustration
ML2¨¨¨T	---------------------------------	Static Liquid Level Transmitter
Transducer	0--------------------------------	Diffused Silicon Transducer
Accuracy	8--------------------------------	±0.2%
Accuracy	5--------------------------------	±0.1%
Output	8--------------------------------	4-20mA
Output	1--------------------------------	4-20mA, HART, RS485
	T--------------------------------
Measuring Mode	A--------------------------------	Common Type *
	G--------------------------------	Oil Resistance Type(0~200℃)
	N--------------------------------	Corrosion Resistance Type
	K--------------------------------	Lightning Stroke Resistance Type
Dimension Requirements	L--------------------------------	Cable Type (Note 1)
Dimension Requirements	G--------------------------------	Rod Type (Note 2)
Measuring Range	1--------------------------------	0-1000mmH₂O
	2--------------------------------	0-5000mmH₂O
	3--------------------------------	0-10000mmH₂O
	4--------------------------------	0-20000mmH₂O
	5--------------------------------	0-30000mmH₂O
	6--------------------------------	0-60000mmH₂O
	7--------------------------------	0-100mH₂O
	8--------------------------------	0-150mH₂O
	9--------------------------------	0-200mmH₂O
Display Header	D--------------------------------	Multiple Parameters & Modes Digital LED Display Header With HART
	L--------------------------------	Common LED Header Without HART
	Z--------------------------------	Pointer Header
	N--------------------------------	No Header
Electrical Connection	5--------------------------------	M20x1.5 Waterproof Concentrator
Power Supply	-A--------------------------------	24VDC
Power Supply	-B--------------------------------	12VDC
Additional Type	-FL------------------------------	Flange Connection (Note 3)
	-NF1----------------------------	Ex-proof Certificate: Exd II CT6
	-NS1----------------------------	Intrinsic Safety Type: Exi II CT4
	-M-------------------------------	Other Requirements (Note 4)
Remarks:
e.g.:ML2088TAL2N5-A-NF1 0-5000mmH₂O
Note1: Please indicate cable length behind type if you choose this code
Note2: Please indicate rod length behind type if you choose this code(Max.3m)
Note3: Please indicate flange size behind type if you choose this code
Note4: Please note in order
*: Standard
Order Attention:
1. Indicate the ambient temperature and medium temperature if it is corrosive.
2. Indicate medium density.
